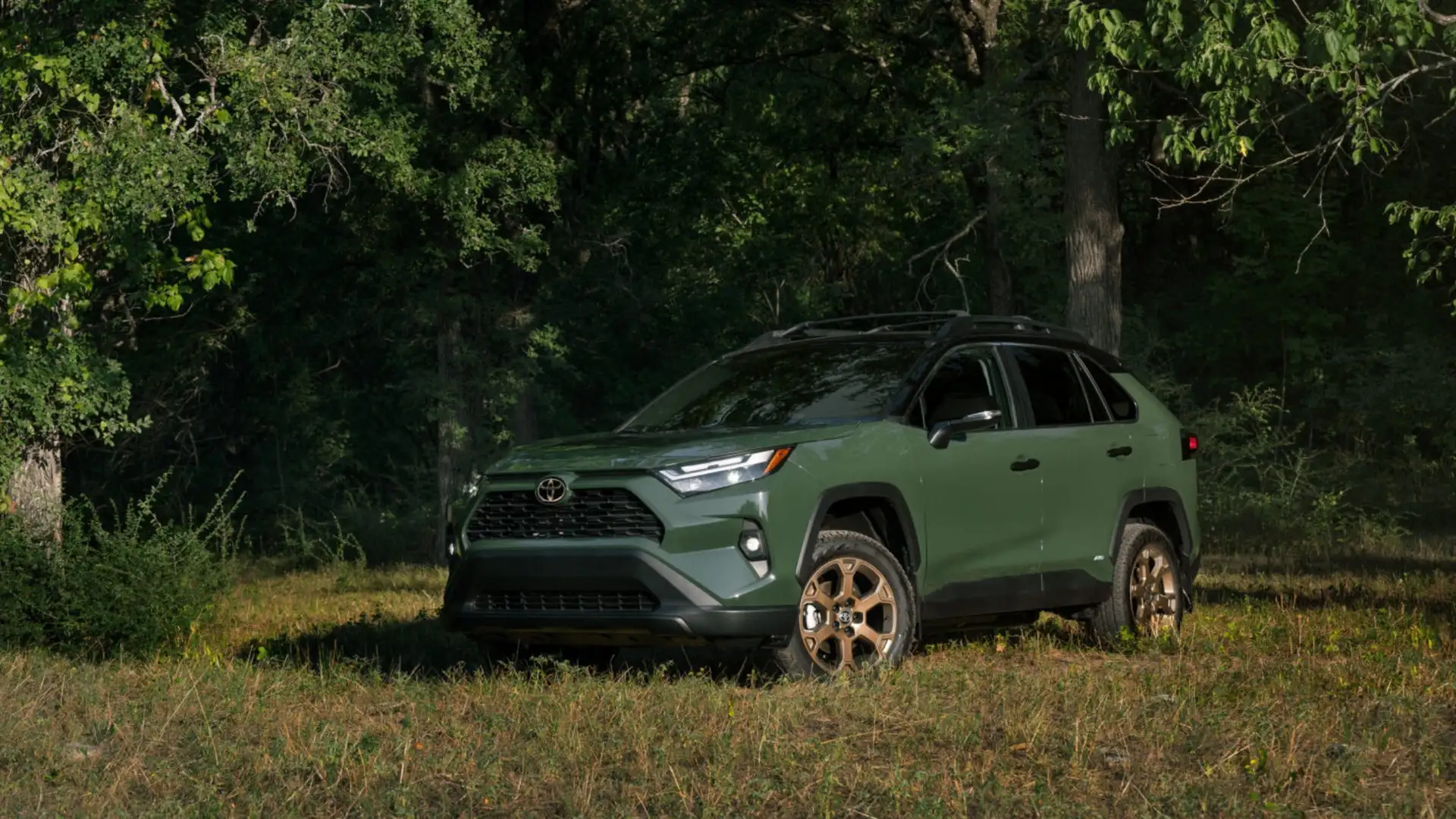

2025 Toyota RAV4 Hybrid in Hagerstown, MD



The 2025 Toyota RAV4 Hybrid presents a balanced approach to hybrid SUV design with a focus on practical engineering. Its drivetrain, body structure, suspension, and integrated systems are optimized for consistent performance and durability. This model aligns with Toyota’s commitment to efficiency and technical refinement across multiple trim levels.

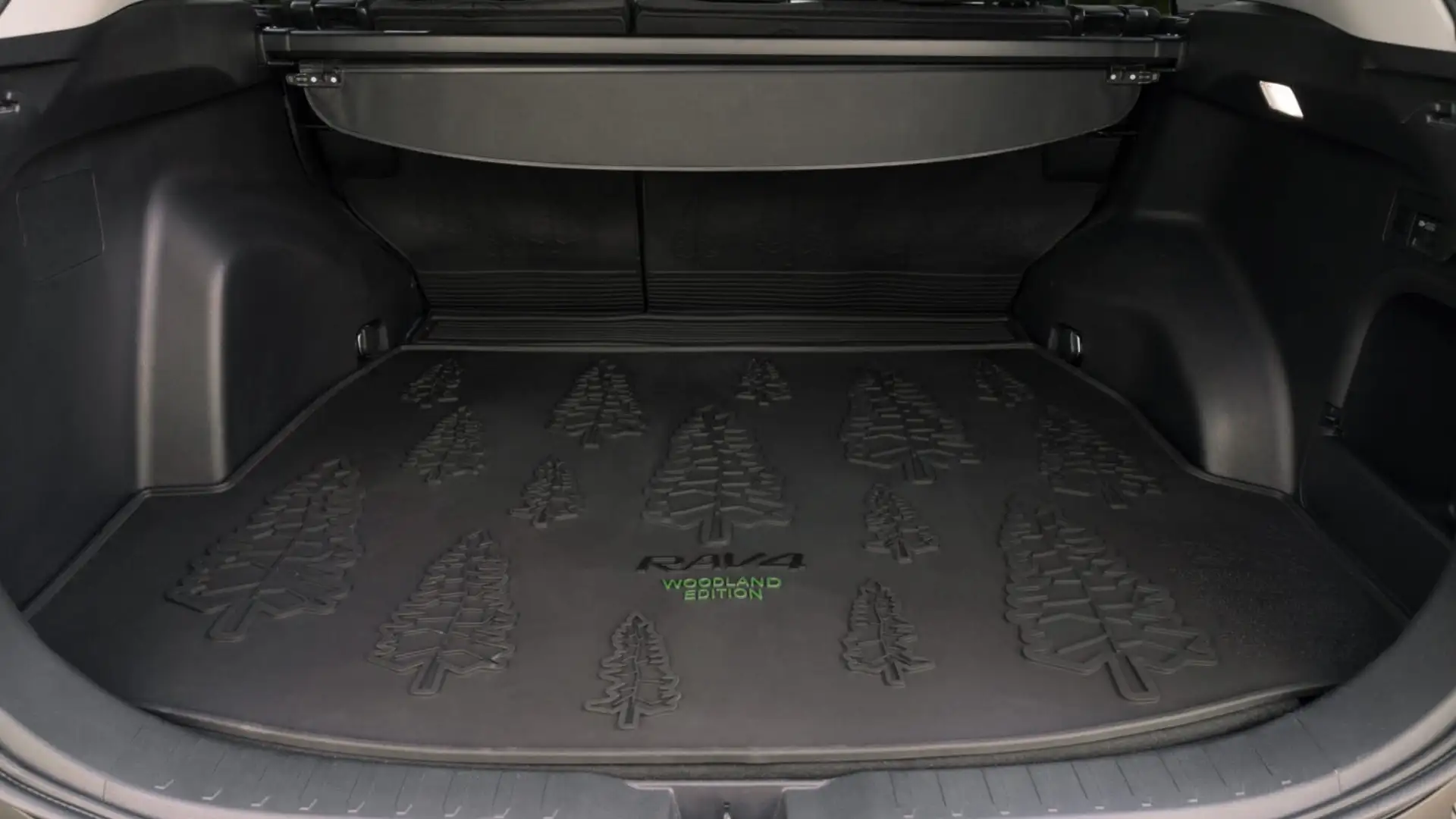

Interior Equipment and Storage Solutions

The interior layout includes a 60/40 split reclining rear seat with fold-flat capability, front and rear cup holders, and power windows with auto up/down across all positions. Select trims include SofTex® seating, power-adjustable front seats, and a digital rearview mirror. Ventilated front seating is exclusive to the Limited Hybrid trim.

The center console contains drive mode selectors, brake hold controls, and two cup holders. Depending on trim, there are up to five USB ports available, distributed across front and rear zones. Select models also feature Qi-compatible wireless charging and ambient lighting in footwells and storage trays.

Digital instrumentation ranges from a 7-inch Multi-Information Display to an optional 12.3-inch digital gauge cluster. This includes a hybrid energy monitor, battery charge status, trip meters, fuel economy data, and maintenance indicators.

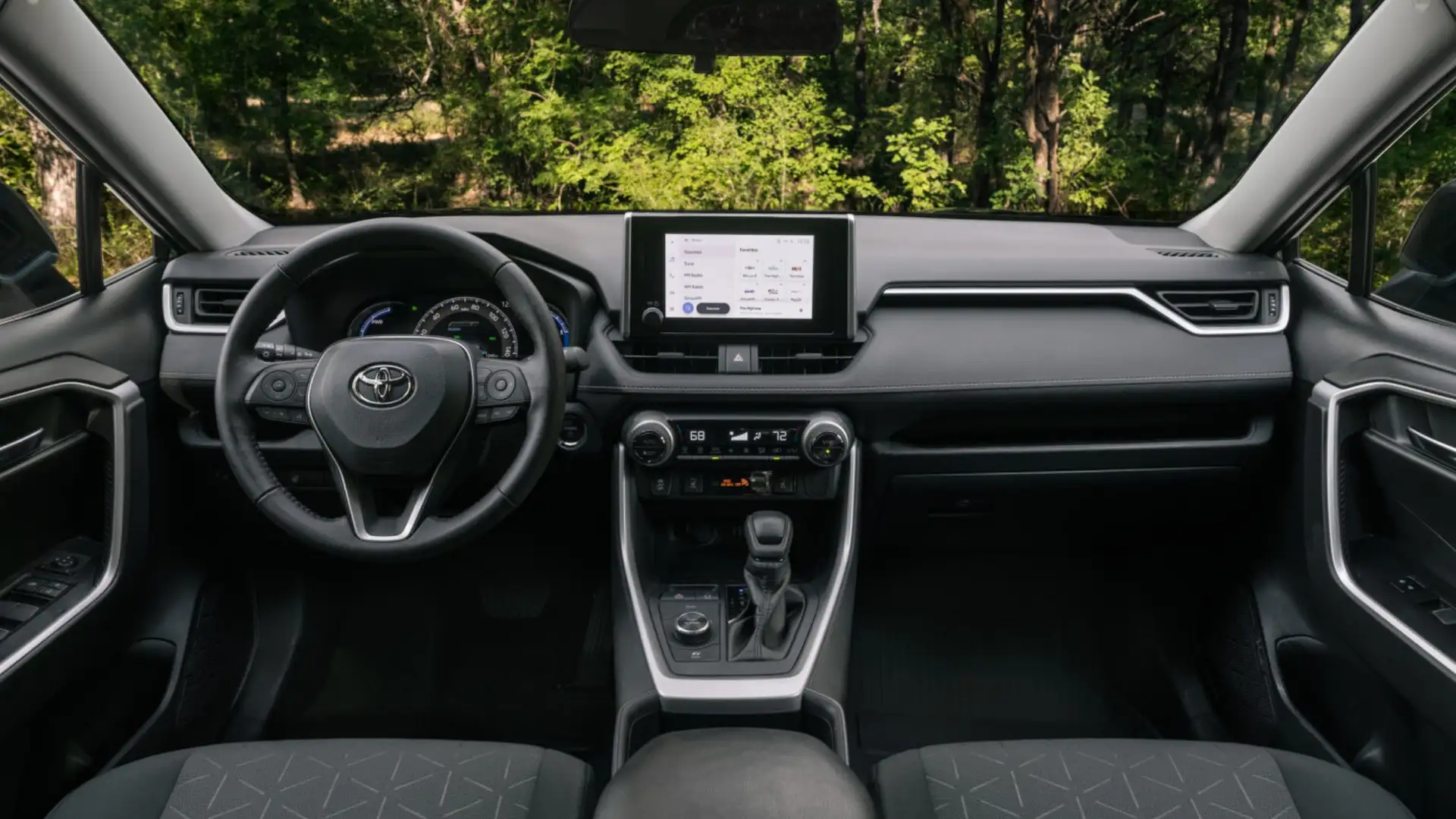

Infotainment and Audio Technology

Multimedia systems begin with an 8-inch touchscreen that includes wireless Apple CarPlay® and Android Auto™ compatibility. Higher trims upgrade to a 10.5-inch display. The JBL® audio system is available on select trims, offering 11 speakers with subwoofer and amplifier.

Connectivity is enhanced by Wi-Fi Connect, Drive Connect with Google Points of Interest, and Intelligent Assistant voice activation. Connected Services also include Remote Connect, Safety Connect, and Service Connect. Availability depends on trim and subscription terms.

Engine Configuration and Powertrain Structure

The 2025 Toyota RAV4 Hybrid features a 2.5-liter Dynamic Force 4-cylinder engine constructed with an aluminum alloy block and aluminum alloy cylinder head. It operates with a total displacement of 2,487 cc and utilizes a bore and stroke of 87.5 mm by 103.4 mm. The engine’s compression ratio stands at 14.0:1. It produces 176 horsepower at 5,700 rpm and 163 lb-ft of torque between 3,600 and 5,200 rpm.

Variable Valve Timing is integrated with an electric motor on the intake camshaft and with standard intelligence control on the exhaust camshaft. This configuration ensures controlled valve operation under varying conditions. The ignition system is Toyota Direct Ignition, and fuel is delivered through the D-4S system. Regular 87-octane unleaded fuel is recommended.

The combined system output, which includes the electric motor, delivers 219 net horsepower. This hybrid configuration meets SULEV emission certification standards. Estimated fuel economy is 41 MPG in the city, 38 MPG on highways, and 40 MPG combined for most trims. The Woodland Edition returns slightly lower figures at 38 MPG city, 35 MPG highway, and 37 MPG combined.

Disclaimer: * EPA-estimated 27 city/35 highway/30 combined mpg rating for 2025 RAV4 LE FWD, XLE FWD, XLE Premium FWD and Limited FWD; EPA-estimated 27 city/34 highway/30 combined mpg rating for 2025 RAV4 LE AWD; EPA-estimated 27 city/33 highway/29 combined mpg rating for 2025 RAV4 XLE AWD and XLE Premium AWD; EPA-estimated 25 city/33 highway/28 combined mpg rating for 2025 RAV4 Limited AWD. EPA-estimated 41 city/38 highway/39 combined mpg rating for 2025 RAV4 Hybrid LE, Hybrid XLE, Hybrid XLE Premium, Hybrid SE, Hybrid XSE and Hybrid Limited; EPA-estimated 38 city/35 highway/37 combined mpg rating for 2025 RAV4 Hybrid Woodland Edition. Use for comparison purposes only. Your mileage will vary for many reasons, including your vehicle’s condition and how/where you drive. See www.fueleconomy.gov.

Electric Motor and Battery Specifications

The electric motor utilizes a permanent magnet synchronous design. Torque output from the motor is rated at 149 lb-ft and 89 lb-ft, supporting both traction and hybrid system regeneration. The sealed lithium-ion battery pack operates at a nominal voltage of 244.8V with a 6.5 amp-hour capacity. Maximum system voltage is 650V.

Drivetrain and Transmission Mechanics

The drivetrain incorporates an Electronic On-Demand All-Wheel Drive layout. Power is distributed to the rear wheels as needed to maintain stability and traction under variable surface conditions. This system operates seamlessly with the Electronically Controlled Continuously Variable Transmission. The transmission features a sequential shift mode, allowing for controlled gear-like transitions when desired.

Suspension and Structural Stability

Front suspension consists of an independent MacPherson® strut system with a stabilizer bar. The Woodland Edition includes TRD-tuned components. Rear suspension features a multi-link design supported by a stabilizer bar. The SE and XSE Hybrid trims receive sport-tuned variants of the multi-link rear suspension. Stabilizer bar diameters measure 25.5 mm in front and 23.5 mm in the rear.

Electric power steering is integrated with a rack-mounted parallel-type electric power-assisted rack-and-pinion system. Steering ratio is set at 14.3:1, requiring 2.76 turns from lock to lock. The curb-to-curb turning diameter is 36.1 feet.

Front braking uses power-assisted ventilated discs with a 12.0-inch diameter. The rear uses solid discs with an 11.1-inch diameter. An electronic parking brake is standard, and anti-lock braking is integrated throughout the system.

Wheel Dimensions and Tire Configurations

Wheel options vary by trim. LE and XLE Hybrid trims are equipped with 17 x 7.0-inch standard aluminum alloy wheels paired with 225/65R17 tires. Woodland, XLE Premium, SE, XSE, and Limited Hybrid trims use 18 x 7.0-inch aluminum alloy wheels. The Woodland trim uniquely offers 18-inch 6-spoke bronze-colored TRD flow-formed alloy wheels paired with 225/60R19 tires.

A temporary spare tire and wheel are provided across all trims for emergency use.

Exterior Dimensions and Ground Clearance

The vehicle measures 180.9 inches in length, 73.0 inches in width, and 67.0 inches in height including the antenna. The wheelbase spans 105.9 inches. Ground clearance is maintained at 8.1 inches. Approach and departure angles are 19 and 21 degrees respectively for all trims except Woodland, which is rated at 18 and 20 degrees.

Interior Volume and Passenger Dimensions

Passenger capacity is five. The interior provides 41.0 inches of legroom in the front and 37.8 inches in the rear. Headroom with the moonroof is 37.7 inches in the front and 39.5 inches in the rear. Shoulder room measures 57.8 inches in front and 56.4 inches in the rear. Hip room is recorded at 54.3 inches in front and 47.7 inches in the rear.

Cargo volume behind the front row, with the second row folded, is 69.8 cubic feet. Behind the second row, capacity is 37.5 cubic feet. Overall passenger volume is 98.9 cubic feet.

Weight Ratings and Towing Capacity

Curb weight varies by trim, with the LE Hybrid rated at 3,690 pounds. The Woodland, XLE, XLE Premium, SE, and XSE Hybrid trims weigh approximately 3,775 pounds. The Limited Hybrid weighs slightly more at 3,800 pounds. Gross Vehicle Weight Rating is set at 4,920 pounds. Towing capacity is rated at 1,750 pounds, with a maximum tongue weight of 175 pounds.

Fuel tank capacity is 14.5 gallons. The engine oil specification is SAE 0W-16 with a total volume of 4.8 quarts including the filter.

Standard and Optional Exterior Features

Various trims offer distinct exterior design elements. Woodland Edition features black exterior accents, dual black chrome-tipped exhaust, and LED projector headlights. The trim also includes black door handles with touch sensors, a black Woodland Edition decal, and integrated LED fog lights. Unique roof rails and 18-inch bronze-colored wheels complete the visual package.

Most trims come standard with LED Daytime Running Lights, color-keyed outside mirrors with integrated turn signals and blind spot indicators, and privacy glass. Additional elements such as rain-sensing wipers, height-adjustable power liftgates, and panoramic glass roofs are available on higher trims.

Safety Architecture and Driver Assistance Systems

Toyota Safety Sense 2.5 is standard across all 2025 Toyota RAV4 models. It features systems such as Pre-Collision with Pedestrian Detection, Full-Speed Dynamic Radar Cruise Control, Lane Departure Alert with Steering Assist, Lane Tracing Assist, and Road Sign Assist.

Standard structural safety includes eight airbags and seatbelt pretensioners for front and rear occupants. All trims also include backup cameras, Vehicle Stability Control, Traction Control, and Electronic Brake-force Distribution.

Additional systems include Blind Spot Monitor with Rear Cross-Traffic Alert, Hill Start Assist, Trailer Sway Control, and a Vehicle Proximity Notification System. Limited trims and select packages include Front and Rear Parking Assist with Automatic Braking and a Panoramic View Monitor.

Schedule a Test Ride at Younger Toyota

To experience the full range of technical features and performance capabilities offered by the 2025 Toyota RAV4 Hybrid, scheduling a test drive is the most effective next step. Viewing the model in person allows for a closer examination of its drivetrain, interior systems, and safety technologies. You can compare trims and explore configurations based on your specific needs. Visit Younger Toyota in Hagerstown, MD to arrange your test drive and consult with a product specialist. Our team is available to provide detailed insights into each feature and assist with any questions regarding model specifications.
